※Vertical Oscillation Sander Specifications
Model No. FTY-39 FTY-39D FTY-48
Sanding motor

3 HP

5 HP

5 HP
Oscillating motor

1/2 HP

1/2 HP

1 HP
Oscillating stroke

20 mm

20 mm

20 mm
Sanding belt size(mm)

2743(L)x150x150(W)

2845(L)x150(W)

3378(L)x150(W)
Spindle speed

50HZ  1450

50HZ  1450

50HZ  1450
(RPM)

60HZ  1720

60HZ  1720

60HZ  1720
Sanding belt speed

50HZ  820

50HZ  820

50HZ  820
(RPM)

60HZ  970

60HZ  970

60HZ  970

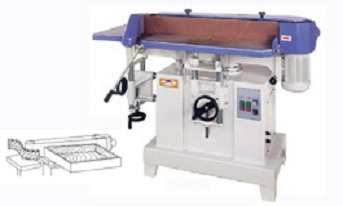

FTY-39

 Worktable

270 x900

270x900

270 x1210
dimension/front(mm)
Worktable

-

270 x 900

-
dimension/back(mm)
Worktable

350 x 450

350 x 450

350 x 450
dimension/side(mm)
Worktable tilt angle

-30° ~ +45°

-30° ~ +45°

-30° ~ +45°
/front & back
Worktable tilt angle/side

± 45°

± 45°

± 45°

FTY-39D

 Machines Size(L*W*H) mm

1670x670x1200

1670x800x1200

1870 x 670 x 1200
Packing Size(L*W*H) mm

1720x720x1350

1720x850x1350

1930 x 720 x 1350
N.W. / G.W. (kgs)

410 / 500

480 / 570

490 / 600

Model No.

FTY-48D

FTY-60

FTY-60D
Sanding motor

5 HP

5 HP

7.5 HP
　 Oscillating motor

1 HP

1 HP

1 HP
Oscillating stroke

20 mm

20 mm

20 mm
Sanding belt size(mm)

3480(L)x150(W)

3962(L)x150(W)

4115(L) x 150(W)
Spindle speed

50HZ  1450

50HZ  1450

50HZ  1450
(RPM)

60HZ  1720

60HZ  1720

60HZ  1720
Sanding belt speed

50HZ  820

50HZ  820

50HZ  820
(RPM)

60HZ  970

60HZ  970

60HZ  970
Worktable

270 x 1210

270 x 1505

270 x 1505
dimension/front(mm)
Worktable

270 x 1210

270 x 1505
dimension/back(mm)
Worktable

350 x 450

350 x 450

350 x 450
dimension/side(mm)
Worktable tilt angle

-30° ~ +45°

-30° ~ +45°

-30° ~ +45°
/front & back
Worktable tilt angle/side

± 45°

± 45°

± 45°
Machines Size(L*W*H) mm

1870x800x1200

2320x670x1200

2320 x 800 x 1200
Packing Size(L*W*H) mm

1930x850x1350

2380x720x1350

2380 x 850 x 1350
N.W. / G.W. (kgs)

560 / 680

560 / 680

640 / 760
