※Door Panel Sander Specifications

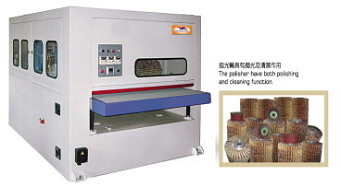

※ The polisher have both polishing and cleaning function.

※ There are 1000mm & 1300mm width both have  right side rollers combination. 		 Model No. 　 FTY-BS2 FTY-BI2
Max. Workpiece Range(mm) Width 1000 1000
Heigh 210 210
Brush Motor 　 2HP x 2 2HP x 2
Feed Motor 　 2HP x 1 2HP x 1
Conveyor Table Elevation Motor 　 1/2HP x 1 1/2HP x 1
Brush Elevation Motor 　 1/2HP x 1 1/2HP x 1
Oscillation Motor 　 1/4HP x 1 1/4HP x 1
Feed Speed 　 0~23 M/min 0~23 M/min
Brush Speed  　 600 ~ 1000 RPM 600 ~ 1000 RPM
Brush Size(mm) 　 40 x 310 x 1000L 40 x 310 x 1000L
Conveying Belt Width  　 1100 mm  1100 mm
Machine Dimension(mm) 　 1800 x 1580 x 1950 2050 x 1580 x 1950
Packing Dimension(mm) 　 1900 x 1680 x 2100 2150 x 1680 x 2100
N.W. / G.W. (kg) 　 1200 / 1350 1350 / 1550

FTY-BS2

FTY-BI2
※Illustration figures for comprehensive

rollers combination --》
FTY-BS4 FTY-BI4 FTY-BSI2 FTY-BI2D
1000 1000 1000 1000
210 210 210 210
2HP x 4 2HP x 4 2HP x 4 2HP x 4
2HP x 1 2HP x 1 2HP x 1 2HP x 1
1/2HP x 1 1/2HP x 1 1/2HP x 1 1/2HP x 1
1/2HP x 1 1/2HP x 1 1/2HP x 1 1/2HP x 1
1/2HP x 1 1/4HP x 2 1/4HP x 2 1/4HP x 2
0~23 M/min 0~23 M/min 0~23 M/min 0~23 M/min
600 ~ 1000 RPM 600 ~ 1000 RPM 600 ~ 1000 RPM 600 ~ 1000 RPM
40 x 310 x 1000L 40 x 310 x 1000L 40 x 310 x 1000L 40 x 310 x 1000L
1100 mm  1100 mm  1100 mm  1100 mm
2620 x 1580 x 1950 2870 x 1580 x 1950 2870 x 1580 x 1950 3100 x 1580 x 1950
2720 x 1680 x 2100 2970 x 1680 x 2100 2970 x 1680 x 2100 3200 x 1680 x 2100
3700 / 3900 3900 / 4100 3900 / 4100 4100 / 4300

FTY-BS4

FTY-BI4

   FTY-BSI2

FTY-BI2D
