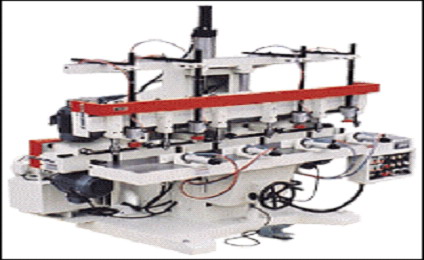

※ FTY-2000 Double-End Horizontal Boring Machine 　 Specifications MODEL FTY-2000 Max. length of workpiece  2000mm Min. length of workpiece  300mm No. of boring spindles  5 Boring spindle stroke  100mm Max. depth of boring  90mm Min. distance between holes  50mm Boring spindle speed  3400rpm  Motor 3HP x 2 Air pressure  5kg/cm2 Machine size  3000 x 730 x 1000 mm Packing size  3100 x 830 x 1150 mm N.W. / G.W.  1120 / 1300kgs   ※ FTY-06 Horizontal & Vertical Boring Machine Specifications MODEL FTY-06 Table size  350 x 1860 mm Cross spindle motor  3HP x 2 Vertical spindle motor  3HP x 2 Hydraulic pump motor  2HP x 1 Cross spindle travel  100mm Vertical spindle travel  150mm  No. of cross vertical spindle 6 No. of cross vertical inder weel  6 No. of hold down clamp  H4 V4 Spindle speed 60HZ RPM  3500, 4500 Spindle speed heigh  H-90, V-90 Machine size  1950 x 1550 x 1800 mm Psacking size  2000 x 1600 x 1950 mm N.W. / G.W.  1050 / 1300 kgs

Fantastic Machinery Co., Ltd.

TEL.: + 886 4 25123889  FAX: + 886 4 25122898

Email: heather.ko1688@msa.hinet.net
