※ Multiple Spindle Boring Machine
Specifications

MODEL FTY-808 FTY-810
Motor 3HP x 2 3HP x 2
Max. table travel 100(4)" 100(4)"
Table size 600 x 1200mm 600 x 1800mm
Number of spindle 8 12
Idler wheel (pcs) 6 pcs 8 pcs
Hold-down clamp (pcs) 4 pcs 6 pcs
Hydraulic motor 2HP 2HP
Packing size 1480 x 1470 2006 x 1575
x 1730mm x 1730mm
N.W./G.W. 900kgs/1050kgs 1050kgs/1250kgs



 MODEL FTY-812 FTY-816
Motor 3HP x 3 3HP x 3
Max. table travel 100(4)" 100(4)"
Table size 600 x 2400mm 900 x 1800mm
Number of spindle 16 16
Idler wheel (pcs) 10 pcs 10 pcs
Hold-down clamp (pcs) 8 pcs 8 pcs
Hydraulic motor 2HP 2HP
Packing size 2600 x 1550x 1730mm 2000 x 1900x 1130mm
N.W./G.W. 1300kgs/1550kgs 1300kgs/1550kgs

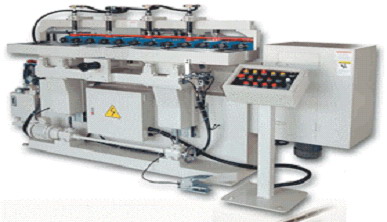

※ FTY-512 Hydraulic oval Boring Machine
Specifications
MODEL FTY-512
Table size 350 x 1860mm
Spindle motor 5HP x 2
Shake spindle motor  1HP x 1
Hydraulic pump motor 2HP x 1
Stroke travel 100mm
Number of spindle 12




 Shake ability 0-80mm
Max. boring diameter 15
Hold-down clamp 4
Pressure 25~3kg/cm²
Packing size 3000 x 1110 x 1600mm
N.W. 1400kgs
G.W. 1600kgs
