FTY-524/526/528 Horizontal Boring Machine |
|
Specifications |
|
|
MODEL |
FTY-524 |
FTY-526 |
| H
spindle motor |
3HP
x 1 |
3HP
x 2 |
| H.
spindle travel |
100mm |
| Number
of H spindle |
6 |
10 |
| Number
of hold down clamp |
3 |
4 |
| Spindle
speed |
2800
RPM / 50Hz, 3500 RPM / 60Hz |
| Max.
boring height |
90mm |
| Min.
distance between |
HS1,
55mm / HS2, 40mm |
| Table
size |
380
x 1260mm |
380
x 1860mm |
|
|
Machine
size |
1280
x 1380 x 1200mm |
1860
x 1380 x 1200mm |
| Packing
size |
1380
x 1480 x 1350mm |
2080
x 1310 x 1360mm |
| Net
weight |
700kgs |
900kgs |
| Gross
weight |
900kgs |
1150kgs |
|
|
|
|
|
MODEL |
FTY-528 |
|
| H
spindle motor |
3HP
x 2 |
|
| H.
spindle travel |
100mm |
|
| Number
of H spindle |
12 |
|
| Number
of hold down clamp |
4 |
|
| Spindle
speed |
2800
RPM / 50Hz, 3500 RPM / 60Hz |
|
|
|
Max.
boring height |
90mm |
|
| Min.
distance between |
HS1,
55mm / HS2, 40mm |
|
| Table
size |
380
x 2440mm |
|
| Machine
size |
2440
x 1380 x 1200mm |
|
| Packing
size |
2590
x 1480 x 1360mm |
|
| Net
weight |
1100kgs |
|
| Gross
weight |
1380kgs |
|
| ※

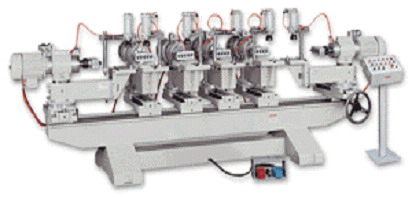

FTY-506 SIX SPINDLE
BORING MACHINE |
|
Specifications |
|
|
|
|
MODEL |
FTY-503 |
FTY-504 |
| Motor |
3HP
x 3 |
3HP
x 4 |
| Spindle
speed |
3400rpm/60HZ,
2800rpm/50HZ |
| Drill
bit size |
(M8
or M10) x 32mm x 5 holes |
| Stroke
distance |
0-80mm |
| Max.
working length |
2100mm(opposite),
2900mm(parollel) |
| Pressure |
6kg/cm |
| Packing
size |
3200
x 1040 x 1320mm(126" x 41" x 52"), 3200 x 1160 x
1320mm(126" x 45" x 52") |
| N.W.
(lbs/kg) |
750kgs |
850kgs |
| G.W.
(lbs/kg) |
950kgs |
1050kgs |
|
|
|
| MODEL |
FTY-505 |
FTY-506 |
| Motor |
3HP
x 5 |
3HP
x 6 |
| Spindle
speed |
3400rpm/60HZ,
2800rpm/50HZ |
| Drill
bit size |
(M8
or M10) x 32mm x 5 holes |
| Stroke
distance |
0-80mm |
| Max.
working length |
2100mm(opposite),
2900mm(parollel) |
| Pressure |
6kg/cm |
| Packing
size |
3200
x 1040 x 1320mm(126" x 41" x 52"), 3200 x 1160 x
1320mm(126" x 45" x 52") |
| N.W.
(lbs/kg) |
950kgs |
1050kgs |
| G.W.
(lbs/kg) |
1150kgs |
1250kgs |
Fantastic Machinery Co., Ltd.
