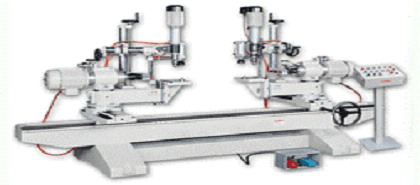

| ※ Double Spindle Boring Machine |
|
|
Specifications |
|
|
|
MODEL |
FTY-502+2R |
FTY-504+2R |
| Motor |
3HP
x 2, 1HP x 2 |
3HP
x 4, 1HP x 2 |
| Spindle
speed |
3400rpm/60Hz,
2800rpm/50Hz |
| Drill
bit size |
HOR.:(M8
or M10) x 32mm x 5 holes / VER.:Chuck |
| Stroke
distance |
0-80mm |
| Max.
working length |
2100(opposite),
2900(parallel) |
| Pressure |
55kg/cm² |
| Machine
size |
3100
x 1030 x 1650mm |
3100
x 1250 x 1650mm |
| Packing
size |
3200
x 1040 x 1320mm |
3200
x 1160 x 1320mm |
| (126"
x 41" x 52") |
(126"
x 45" x 52") |
| N.W./G.W. |
770/970kgs |
1170/1390kgs |
|
|
|
| Specifications |
|
|
| ※FTY-502+2R
DOWEL BORING MACHINE |
MODEL |
FTY-506+2R |
|
 |
Motor |
3HP
x 6, 1HP x 2 |
|
| Spindle
speed |
3400rpm/60Hz,
2800rpm/50Hz |
|
| Drill
bit size |
HOR.:(M8
or M10) x 32mm x 5 holes / VER.:Chuck |
|
| Stroke
distance |
0-80mm |
|
| Max.
working length |
2100(opposite),
2900(parallel) |
|
| Pressure |
55kg/cm² |
|
| Machine
size |
3100
x 1250 x 1650mm |
|
| Packing
size |
3200
x 1160 x 1320mm |
|
| (126"
x 45" x 52") |
|
  |
N.W./G.W. |
1170/1390kg |
|
|
|
|
| Specifications |
|
|
| MODEL |
FTY-502 |
|
| Motor |
3HP
x 2 |
|
| Spindle
speed |
3400rpm/60HZ,
2800rpm/50HZ |
|
| Drill
bit size |
(M8
or M10) x 32mm x 5 holes |
|
| Stroke
distance |
0-80mm |
|
| Max.
working length |
2100mm(opposite),
2900mm(parollel) |
|
| FTY-101A
with multidirection adjustment |
Pressure |
6kg/cm |
|
| |
Packing
size |
3200
x 1040 x 1320mm(126" x 41" x 52"), 3200 x 1160 x
1320mm(126" x 45" x 52") |
|
| N.W.
(lbs/kg) |
650kgs |
|
| G.W.
(lbs/kg) |
850kgs |
|
|
|
 |
