※ FTY-114 TSix-Unit Boring Machine
Specifications
MODEL FTY-114T
Max. distance between center 32mm
Number of horizontal boring head spindles per head 21 x 2
Number of vertical boring head spindles per head (11 x 2) x 4
Power of motors 2.5HP x 10
Min.   distance Vertical heads 150mm
Max.   distance Vertical heads 2400mm
Spindle speed 2800rpm(50Hz)/3300rpm(60Hz)
Pneumatic backstop 2
Adjustment boring depth 0-65mm

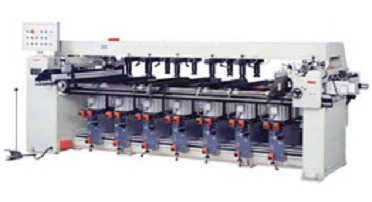

※ FTY-196T Nine-Unit Boring Machine N.W./G.W. 2400kgs/2600kgs
packing size 3810 x 1940 x 1850mm



Fantastic Machinery Co., Ltd.

TEL.: + 886 4 25123889  FAX: + 886 4 25122898

Email: heather.ko1688@msa.hinet.net
