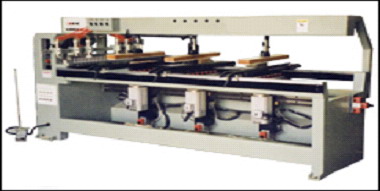

※ Three-Unit Boring Machine
Specifications
MODEL FTY-63T FTY-84T
Max. distance between centers  32mm 32mm
Number of spindle per boring head  21+21+21 21+21+21+21
Max. boring depth  80mm 80mm
Total motor power  2HP x 3 2HP x 4
Spindle speed  2800rpm 2800rpm
Max. distance vertical head 1100mm 2000mm
N.W./G.W.  620kgs/730kgs 720kgs/820kgs
Machine size  2000 x 1260 x 1300mm 3067 x 1260 x 1300mm
Packing size  2235 x 1320 x 1575mm 3330 x 1320 x 1575mm
※FTY-84T Four-Unit Boring Machine (88" x 52" x 62") (130" x 52" x 62")
